LED display 3 phase motor protector
Home > Products > Other Distribution Transformers > LED display 3 phase motor protector

LED display 3 phase motor protector


  • LED display 3 phase motor protector
  • LED display 3 phase motor protector
  • LED display 3 phase motor protector
  • LED display 3 phase motor protector

LED display 3 phase motor protector

    Unit Price: 130 USD
    Min. Order: 1 Acre
    Packaging: carton box
    Productivity: 10000set/year
    Brand: Acrel
    Transportation: Ocean,Land,Air,Express
    Place of Origin: Jiangyin,China
    Supply Ability: 10000 sets/month
    Certificate: CE,IEC
    HS Code: 8536300000
    Port: Shanghai

Basic Info

Model No.: ARD2F-25+90L

Product Description

LED display 3 phase motor protector

ARD series LED display 3 phase motor protector (hereinafter referred to as protector) can perform various conditions such as start timeout,over load, phase failure, unbalance, under load, ground/leakage, blockage, short circuit and external fault during motor operation. Protection, and SOE fault event recording function, convenient for on-site maintenance personnel to find the cause of the fault. Suitable for coal petrochemical,smelting, electric power, ships, and civil construction. The protector has RS485 remote communication interface, DC 4 ~ 20mA analog output, and PLC, PC and other control machines form a network system. Remote monitoring of motor operation.

Specification
Parameter
Technical Specification

Power Supply
AC85~265V/DC100~350V, power consumption 15VA

Rated Voltage
AC380V/AC660V, 50Hz/60Hz



Rated Current
1A(0.1A~999.9A)


Small special current transformers

5A(0.1A~999.9A)


1.6A(0.4A~1.6A)


6.3A(1.6A~6.3A)


25A(6.3A~25A)


100A(25A~100A)


250A(63A~250A)

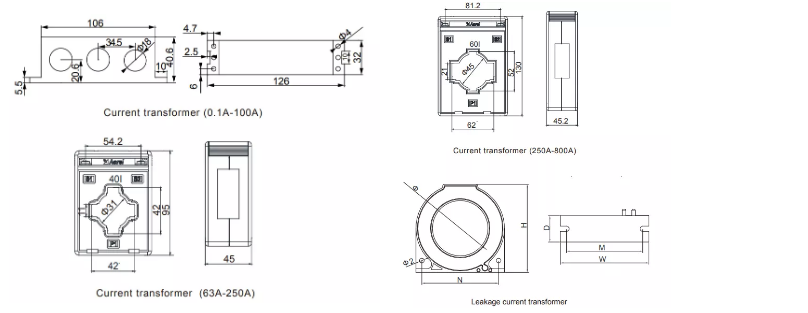

Special current transformers

800A(250A~800A)

Relay output contactor
Rated negative capacity


4 channels, AC250V, 3A

Switch input
2 channels, opto-coupler isolation

Communication
RS485(Modbus RTU)



Environment
Operation temperature
-10℃~+55℃

Storage temperature
-20℃~+65℃

Relative humidity
5%~95%(No condensation)

Altitude
≤2000m
Class of pollution
Level 2

Protection level
Main module IP20

Installation category
Class III

Connections
motor protection

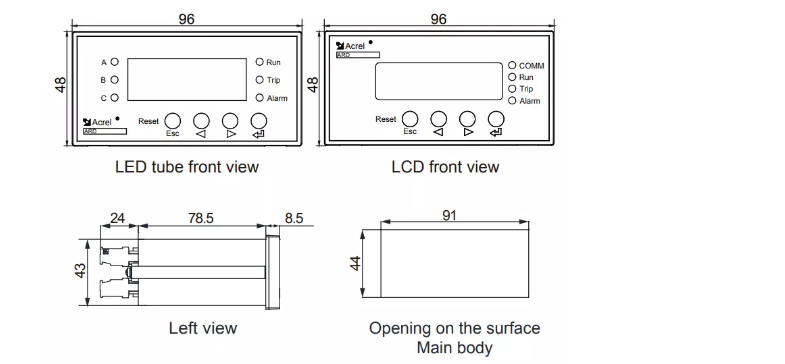

Dimensions
3 phase motor protector
blocking motor protectorCustomer Photo

Motor controller
motor protector with leakage CTs
motor protector with alarm
motor protection relay

Packing & Delivery
led motor protector
Company Profile
single phase motor protector
Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]
Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q: What is your terms of payment ?

A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.

Q: Are you trading company or manufacturer ?

A: We are factory.
